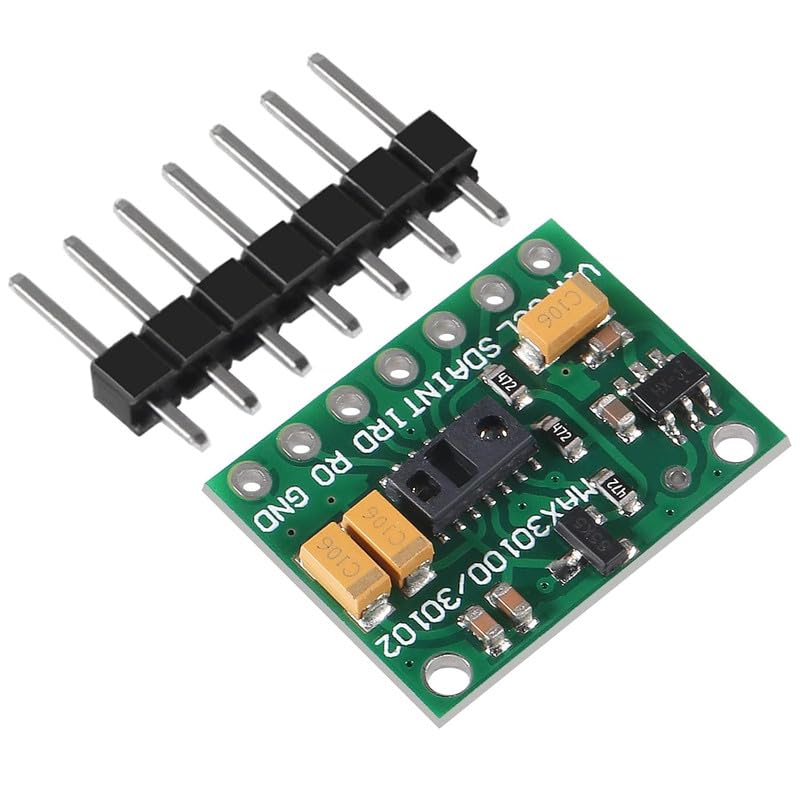

REES52 MAX30100 Heart Rate Pulse Oximeters Development Board Sensor Module for portable auxiliary health devices Medical monitoring devices

Price: ₹700 - ₹261.00
(as of Jun 14, 2026 03:22:41 UTC – Details)


Specifications:
Heart-Rate Monitor and Pulse Oximeter Sensor in
LED Reflective Solution
Tiny 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module
Integrated Cover Glass for Optimal, Robust
Ultra-Low Power Operation for Mobile Devices
Programmable Sample Rate and LED Current for
Power Savings
Low-Power Heart-Rate Monitor (<1mW)
Ultra-Low Shutdown Current (0.7?A, typ)
Fast Data Output Capability
High Sample Rates
Robust Motion Artifact Resilience
High SNR
-40°C to +85°C Operating Temperature Range
Applications
Wearable Devices
Heart-rate monitor
Pulse oximeter
Fitness Assistant Devices
Packing Included :

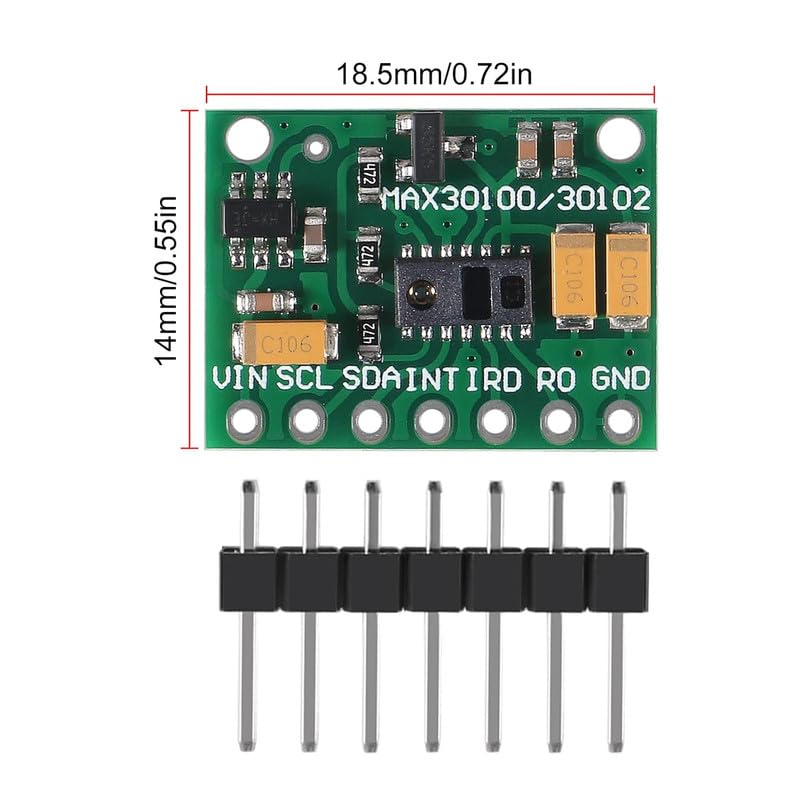

1 X MAX30100 Heart Rate Pulse Oximeters Development Board

The MAX30100 has pulse oximetry and heartrate monitor two functions. And the product combines two LEDs and a photodetector.
The product can detect pulse oximetry and heart-rate signals after processing the optimized optics and low-noise analog signal.
The MAX30100 adopts power supplies from 1.8V and 3.3V and can be powered off through software with negligible standby current. So you can remain the power supply connected at all times.
CJMCU-30100 is an integrated pulse oximetry and heartrate monitor sensor solution.
It combines two LEDs, a photodetector, optimized optics, and low-noise analog signal processing to detect pulse oximetry and heart-rate signals.
